«Power Supplies

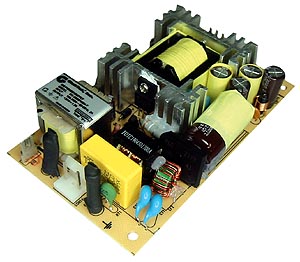

Open-Frame 65 Watt Single-Output, voltage from: 3.3V to 48V in 0.1V increment, single-platform design (3 x 5 x 1.2)(in), industry standard, with Input Current-Shaper. This high efficiency, 85% typ., family of Open-Frame/ PCB Mount Style power supplies, has integral multi-fold heatsinks natural convection cooling, and In/Out Headers with Locking Ramp Connector for Open-Frame Configurations (non-locking headers for PCB Mount); accepts Universal Input: 90-264 VAC, features regulated output with low ripple, has Class B EMI Filter and P.F. Correction; also Built-in Protection features: O.C./S.C., O.V., O.T., meets Safety Agency Requirements: UL60950 (ITE) and UL2601 (Medical), CE Compliant for Grounded (Class I) and Non-Grounded Class II) Applications. Modified and custom designs, such as: constant current, battery chargers and other internal applications are also available. Priced at OEM quantities. Made in USA option available upon request.
